pigg - Raspberry Pi and Pi Pico GPIO Remote control from GUI and CLI

A set of apps for Raspberry Pi GPIO Output control and Input visualization, with GUI and CLI Support for macOS, Linux (including Raspberry Pi) and Windows; GPIO CLI agent for Raspberry Pi and embedded applications for Pi Pico (USB) and Pi Pico W (USB, TCP).

(some images/gifs/videos maybe slightly out of date as the GUI evolves…)

See what’s new in latest release

• Here are two videos showing the two ways to use it, with pigglet running on a RPi shown via VNC.
  • Video with Dialog
  • Video using CLI argument

You can see more gifs and videos of features here

Website

Feature Summary

• Directly on a Pi or Pi Pico or remotely from other platforms you can configure the GPIO hardware Inputs and Outputs, controlling the level of the Outputs and view the level of the Inputs in the GUI.
• Pre-built images for different OS and CPU architecture, along with installers. See INSTALLING.md for details.

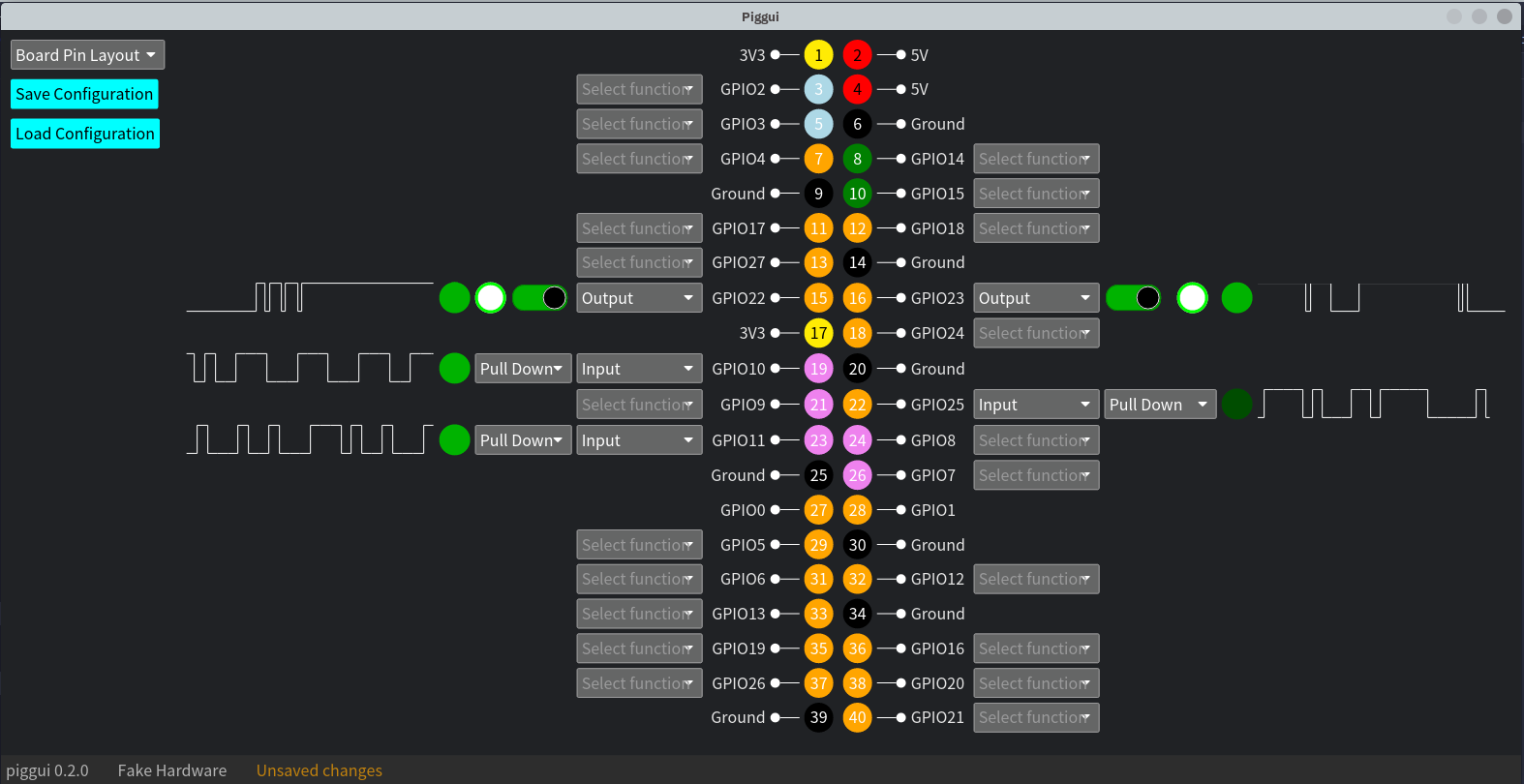

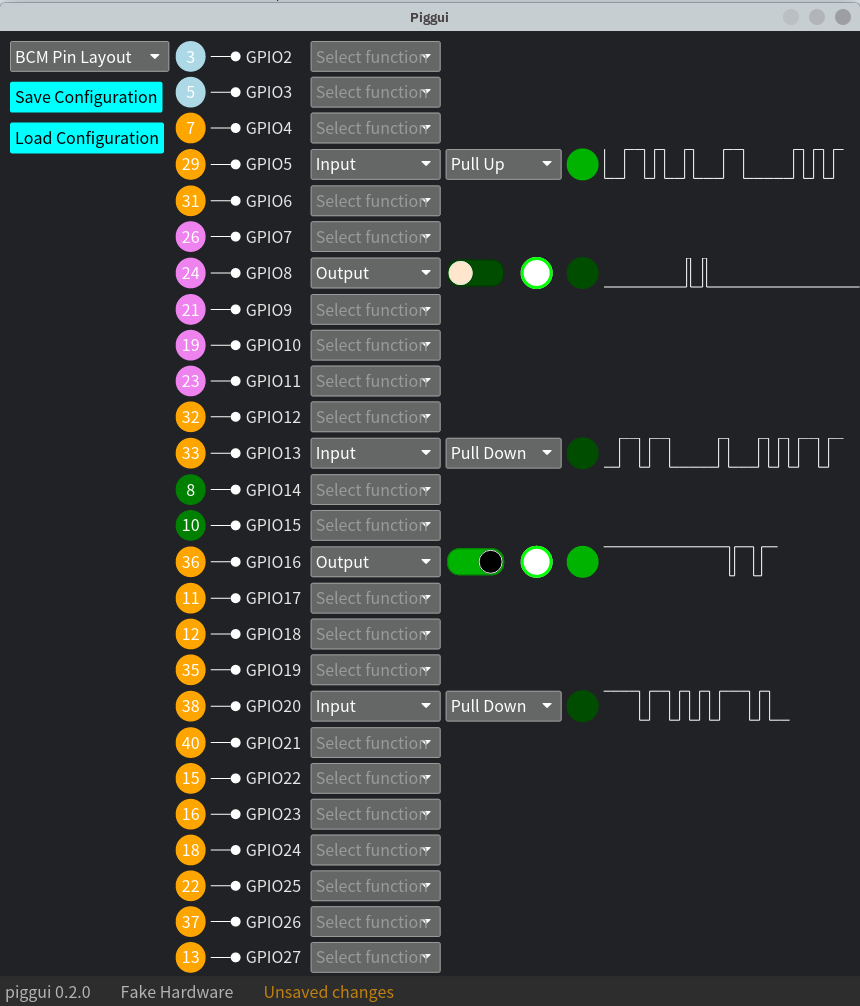

• Visual representation of the GPIO pins in two layouts, a “Board Pin Layout” that mimics the physical layout of the Pi’s GPIO connector/header, or a “BCM Pin Layout” with only the programmable GPIO pins, ordered by BCM pin number. Physical pin layout adapts to reflect the device that piggui is connected to as Pi and Pi Pico pin outs are different.
• Each pin has its board pin number, name and function.
• Drop down selector to config each pin (Currently as an Input with or without pull-up/pull-down, or as an Output)

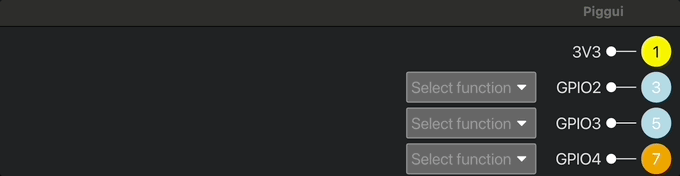

• Inputs have a visualization like an LED to show its current level (Black is unknown, Red is off, Green is on), plus a waveform view that shows you the recent history of the level detected on the input.

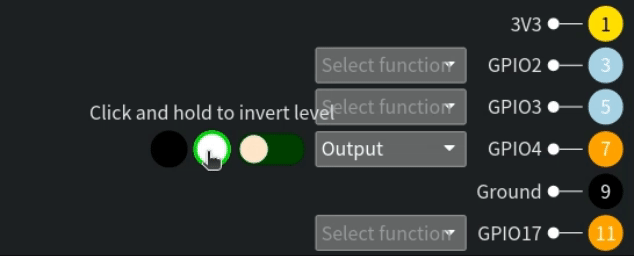

• Outputs have a toggle switch that can be used to change the stable value of the output, plus a “clicker” for quick inversions of the stable level, plus a waveform view showing the recent history of the level set on the Output.
• GPIO configurations can be loaded at startup with a command line filename option, or loaded via file-picker from the UI or saved to file via file picker, or the device will communicate it’s current configuration to the GUI, allowing you to continue with the configuration currently being used by the GPIO hardware.
• GUI discovery of devices using mDNS for networked pigglets and porkys, or USB for direct connected porkys.
• The GUI (piggui) can connect to a Pi (running pigglet) over the network, or to a Pi Pico/Pi Pico W (over the network or USB direct connect) to control and view the GPIO hardware from a distance.
• The GUI can run on Mac, Linux, Windows or Raspberry Pis. Events are timestamped at source (as close to the hardware as possible) so network delays should not affect the waveforms displayed. Please provide us feedback and ideas related to networking in Discussions or GH issues.
• The data required to connect to a remote node via iroh-net is called the nodeid. pigglet prints this out for you if it is started in the foreground. When pigglet has been started as a system service, start another instance in the foreground and this will detect the background instance and display its nodeid for you then exit.

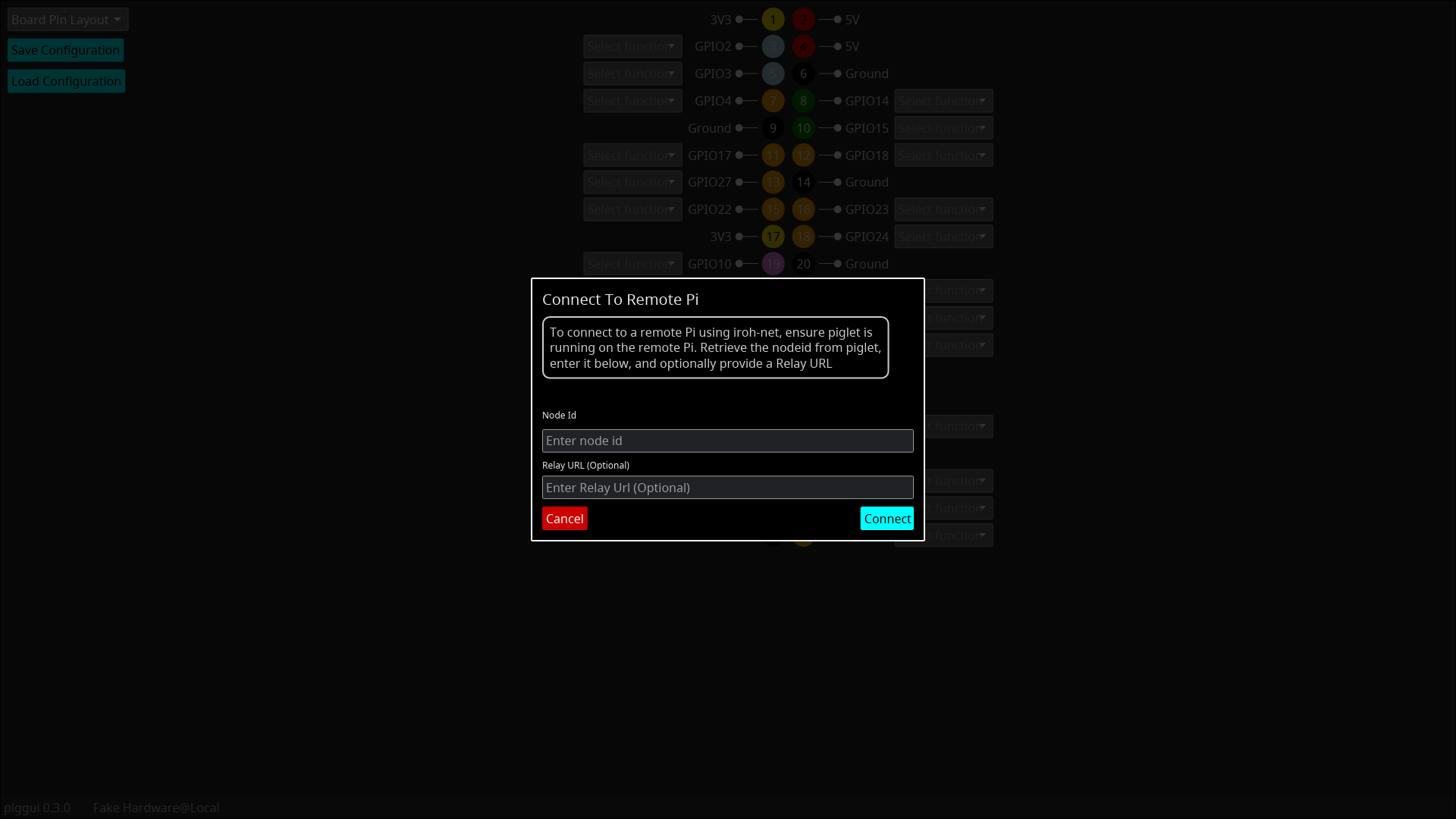

• Take the nodeid and either supply it as a command line option to piggui (--nodeid $nodeid, prefixed with -- if using cargo run) or enter it into the GUI. To connect to a remote instance from the GUI, click on the “hardware menu” in the left of the info bar at the bottom of the screen and select the “Connect to remote Pi…” menu item. Then enter the nodeid into the field provided and hit “Connect”
